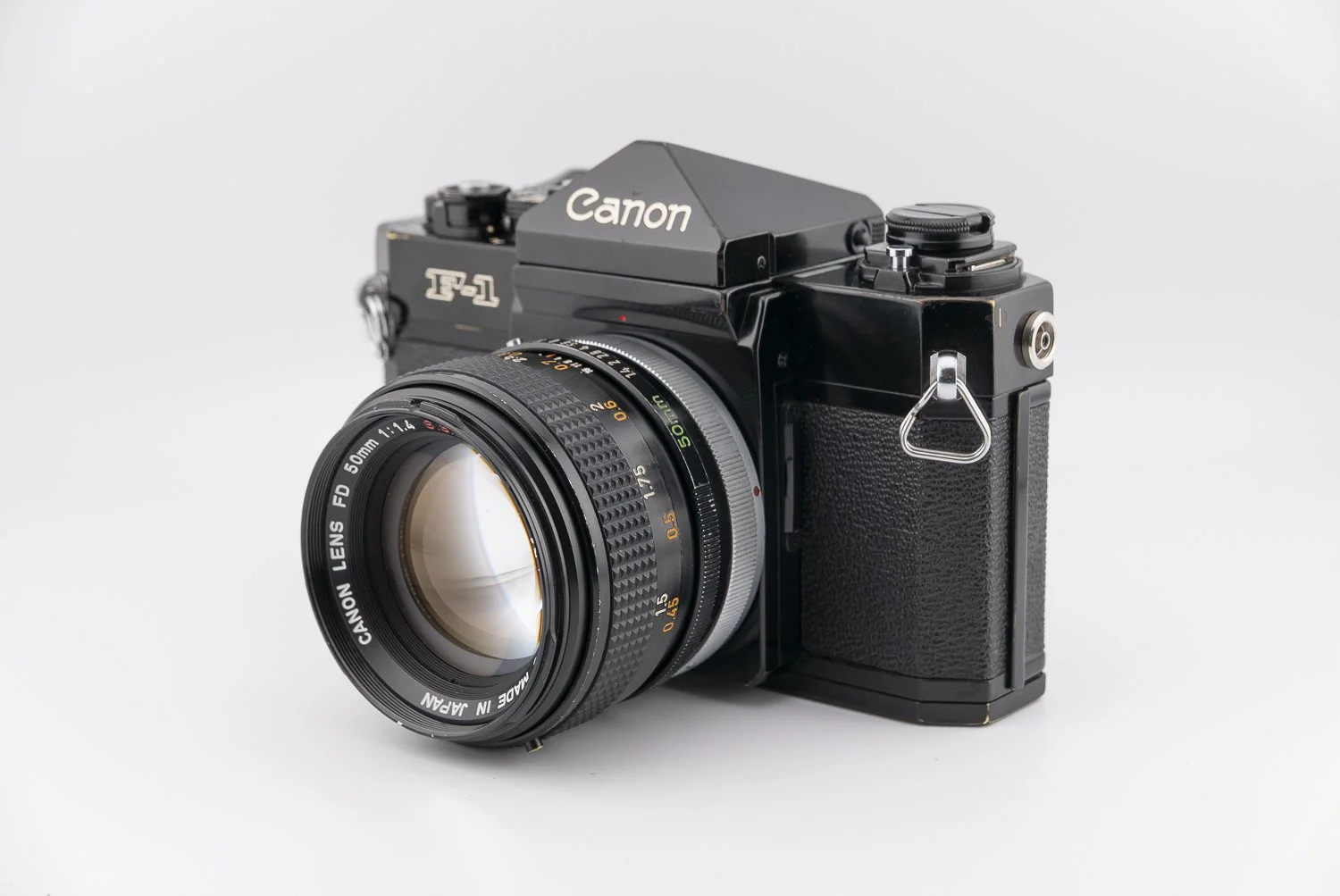

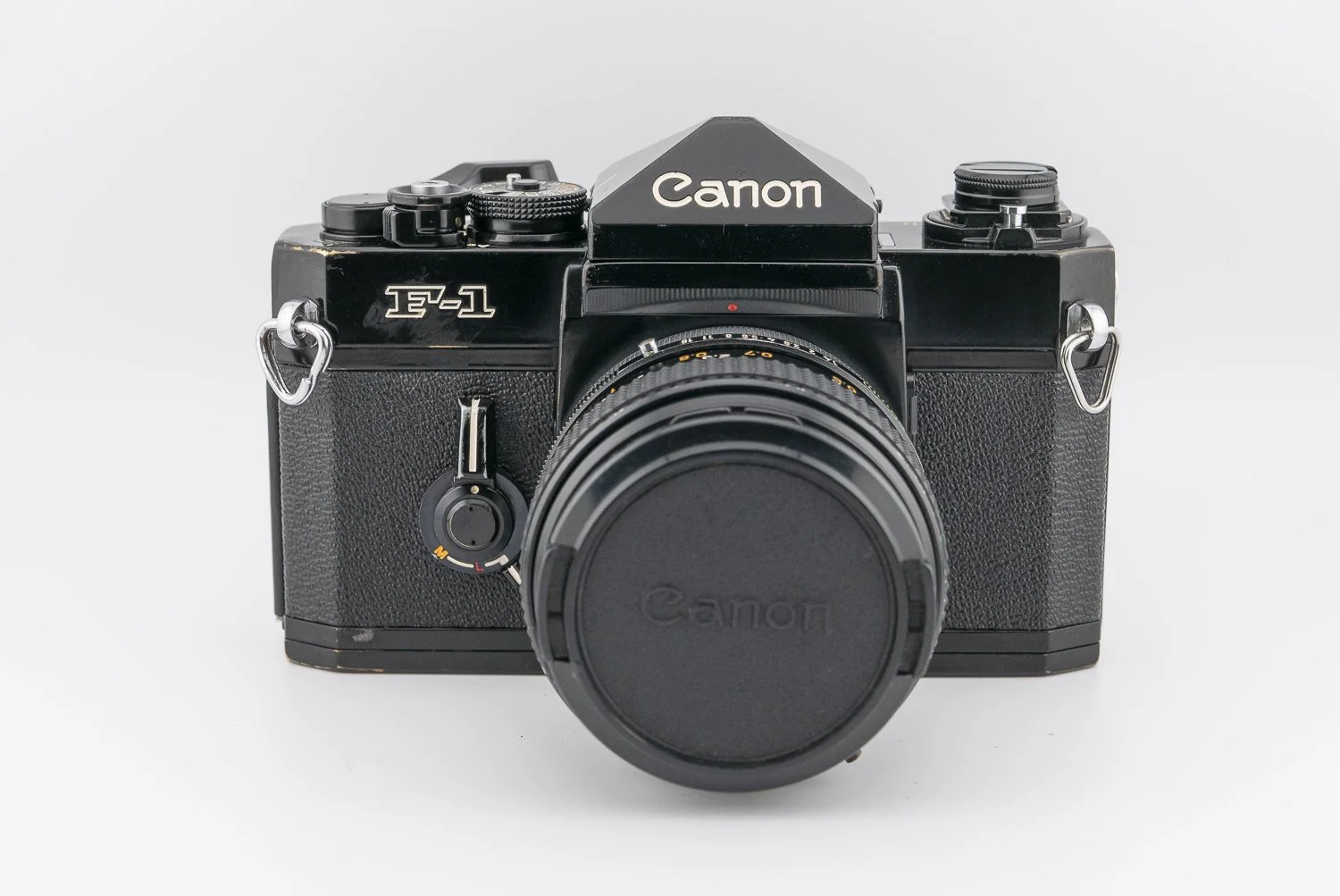

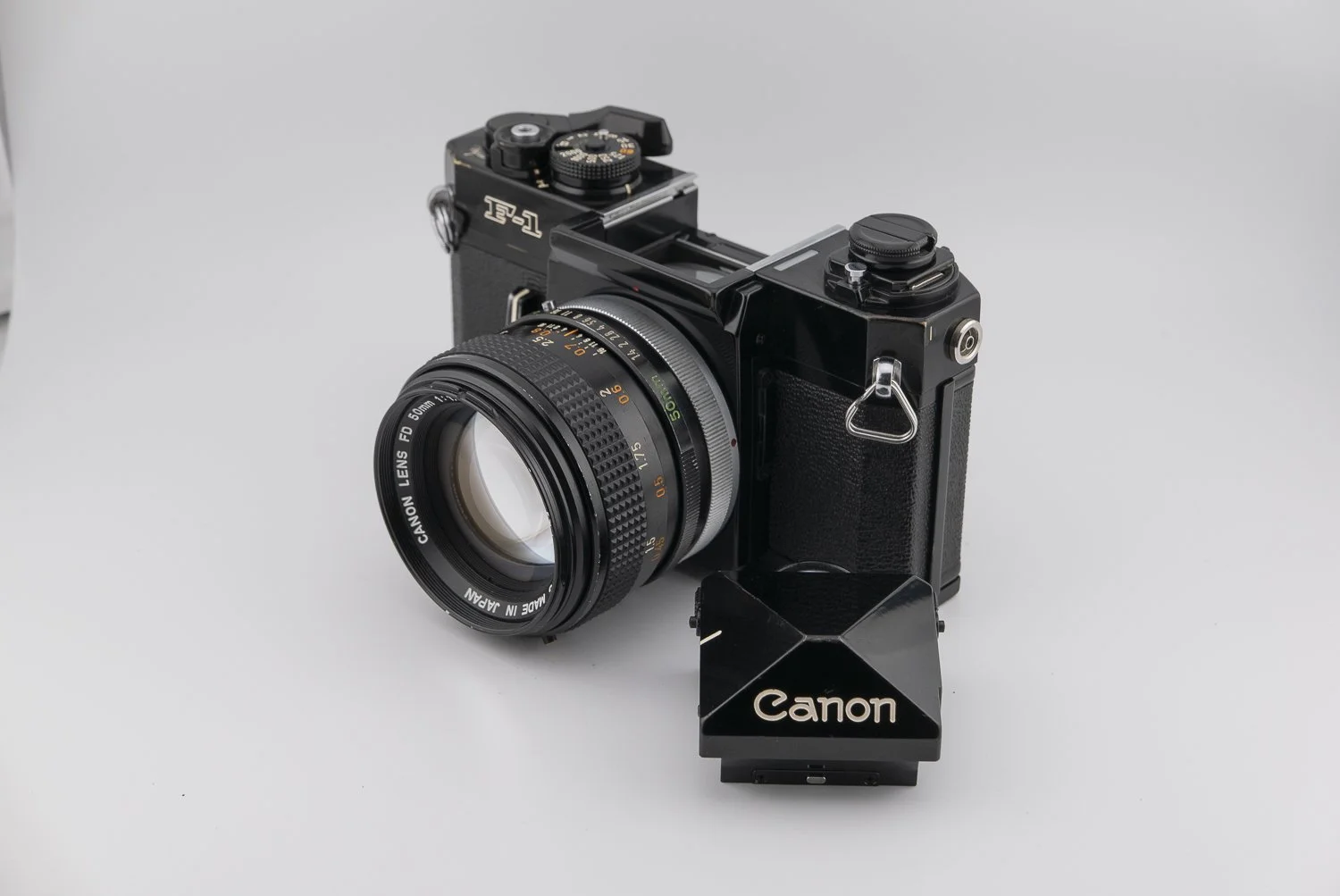

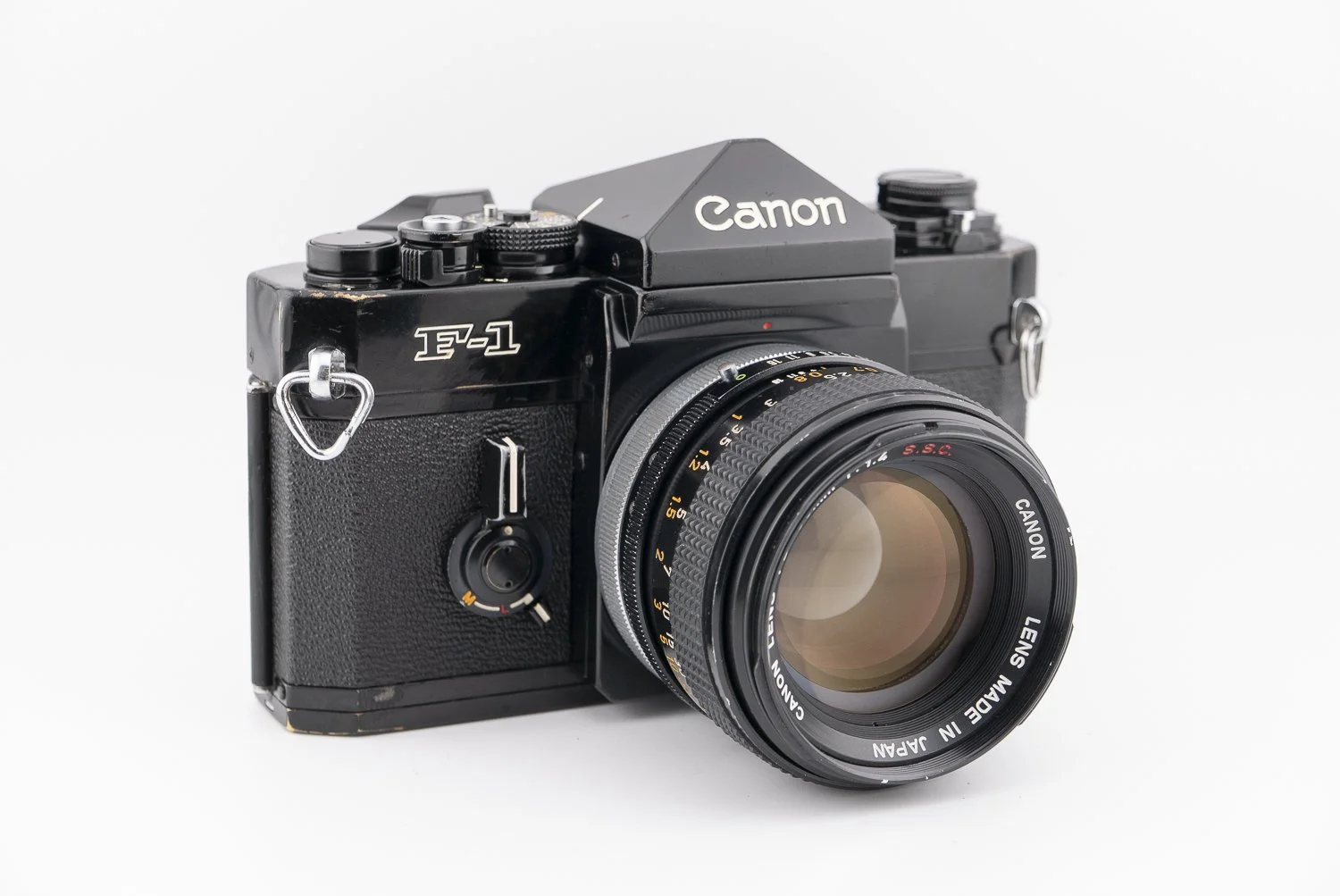

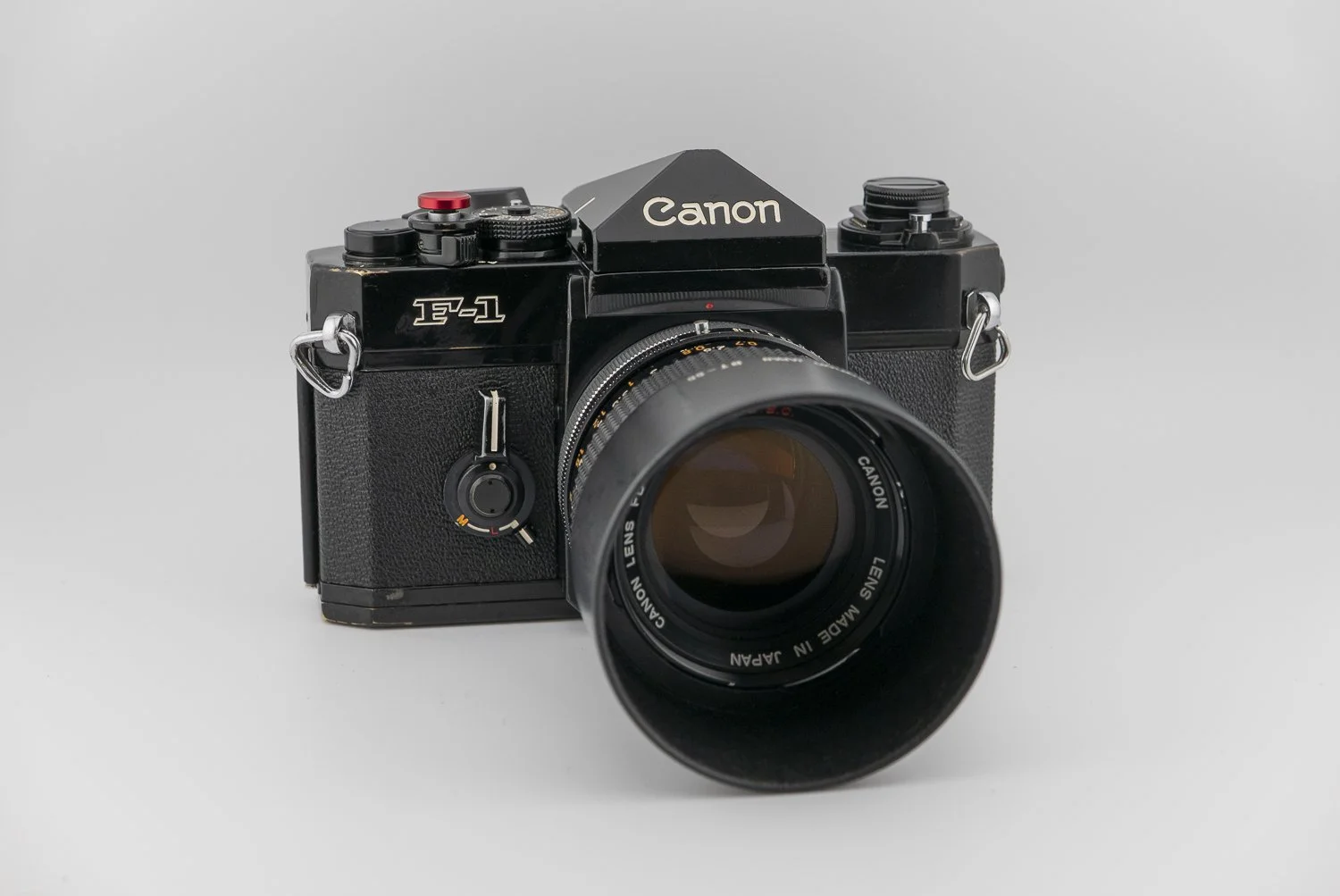

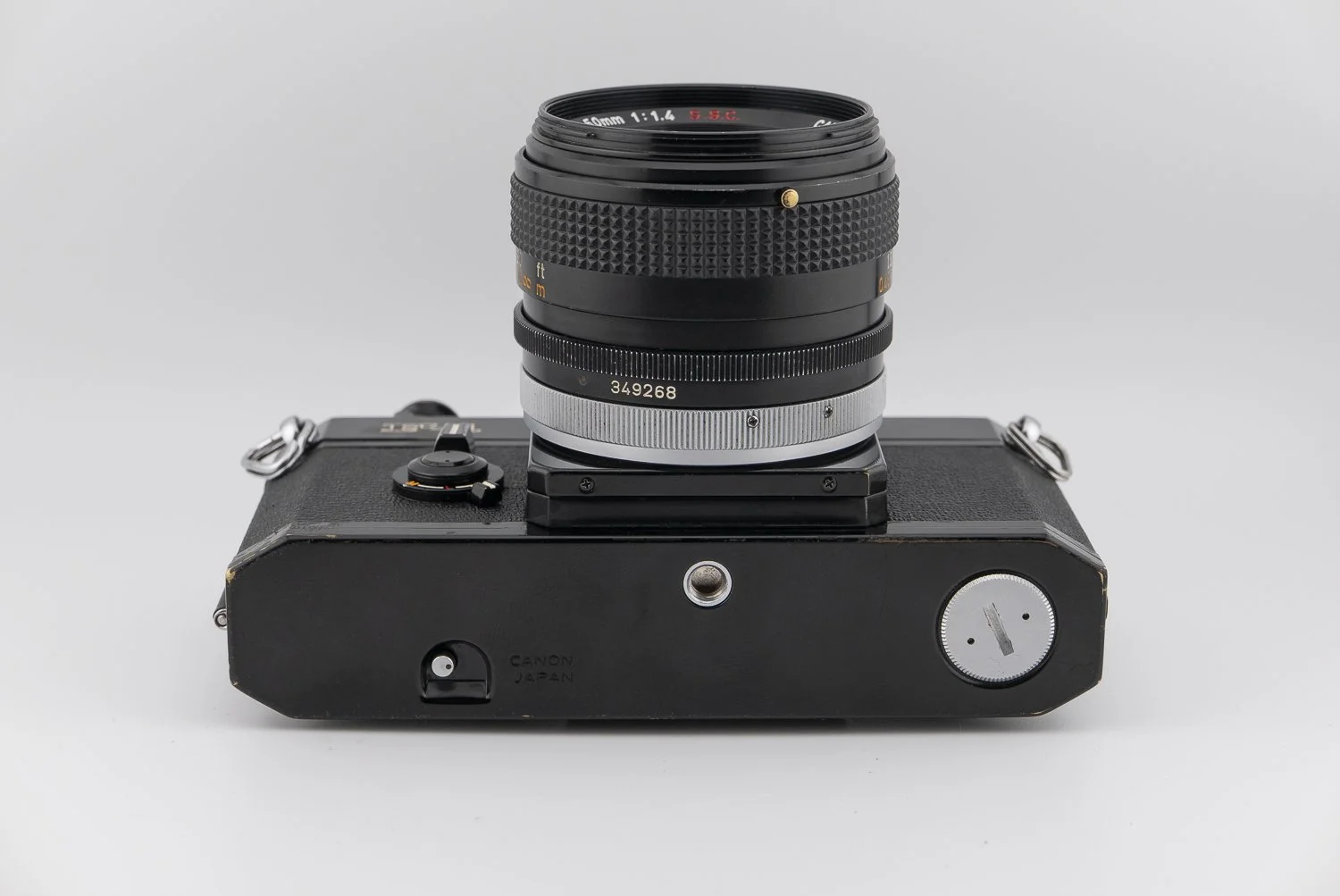

Type - 35mm focal-plane shutter SLR camera

Picture Size - 24 x 36 mm

Normal Lens - FD 50mm f/1.4

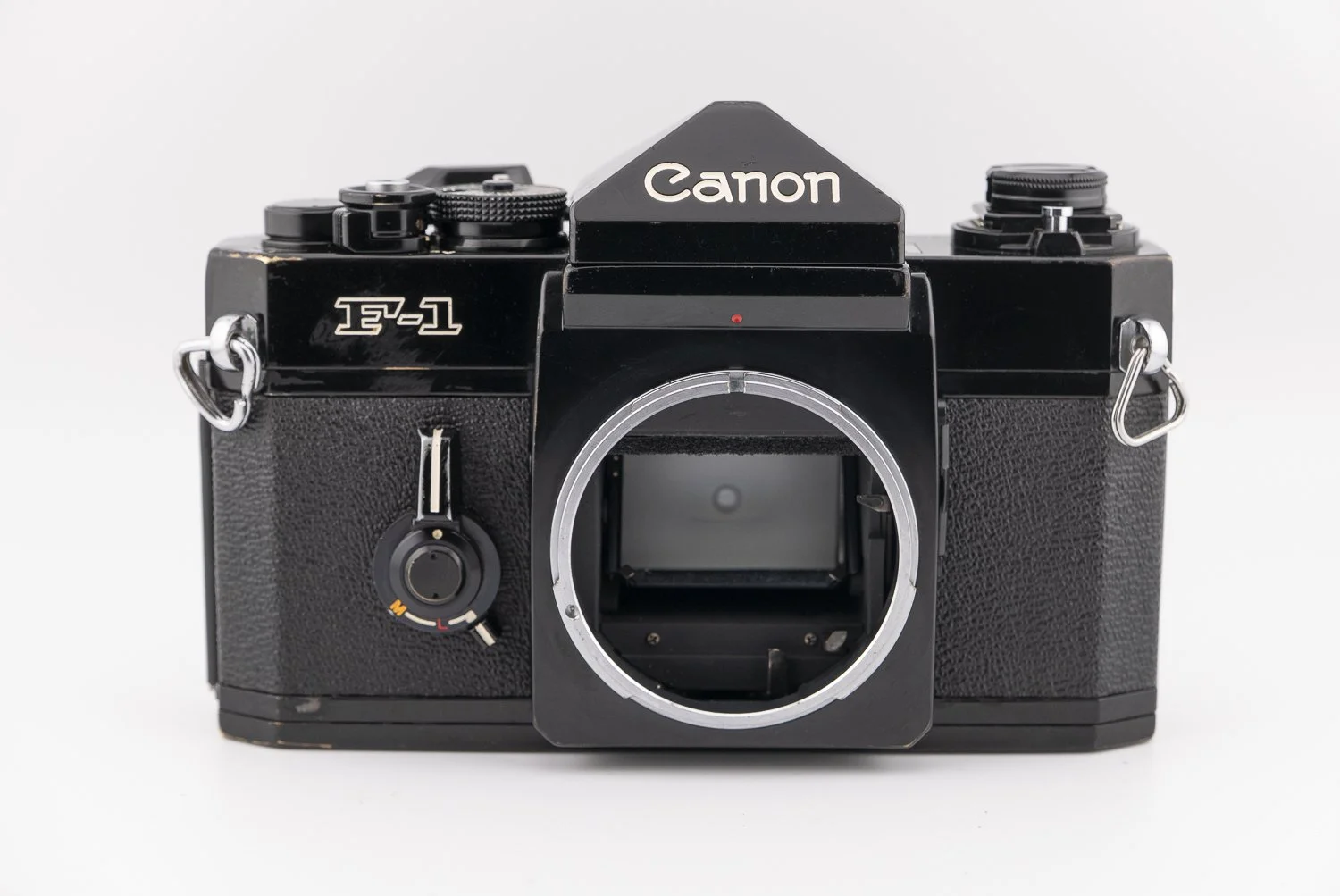

Lens Mount - FD mount: Three-lug bayonet (spigot type) mount with 48mm inner diameter and 42mm flange back. Camera body equipped with signal lever, aperture signal lever, and auto aperture lever. FD lens equipped with AE switching pin, signal pin, and auto aperture lever. The mount enabled full-aperture metering and auto-exposure without requiring any changes in its basic specifications.

Shutter - Four-axis, horizontal-travel focal-plane shutter with metal curtains. X, B, 1, 1/2, 1/4, 1/8, 1/15, 1/30, 1/60, 1/125, 1/250, 1/500, 1/1000, 1/2000 sec. Built-in self-timer (self-timer lever also functions as a stop-down lever). Multiple exposures enabled.

Flash Sync - FP- and X-sync automatic-switching sync contacts with German socket

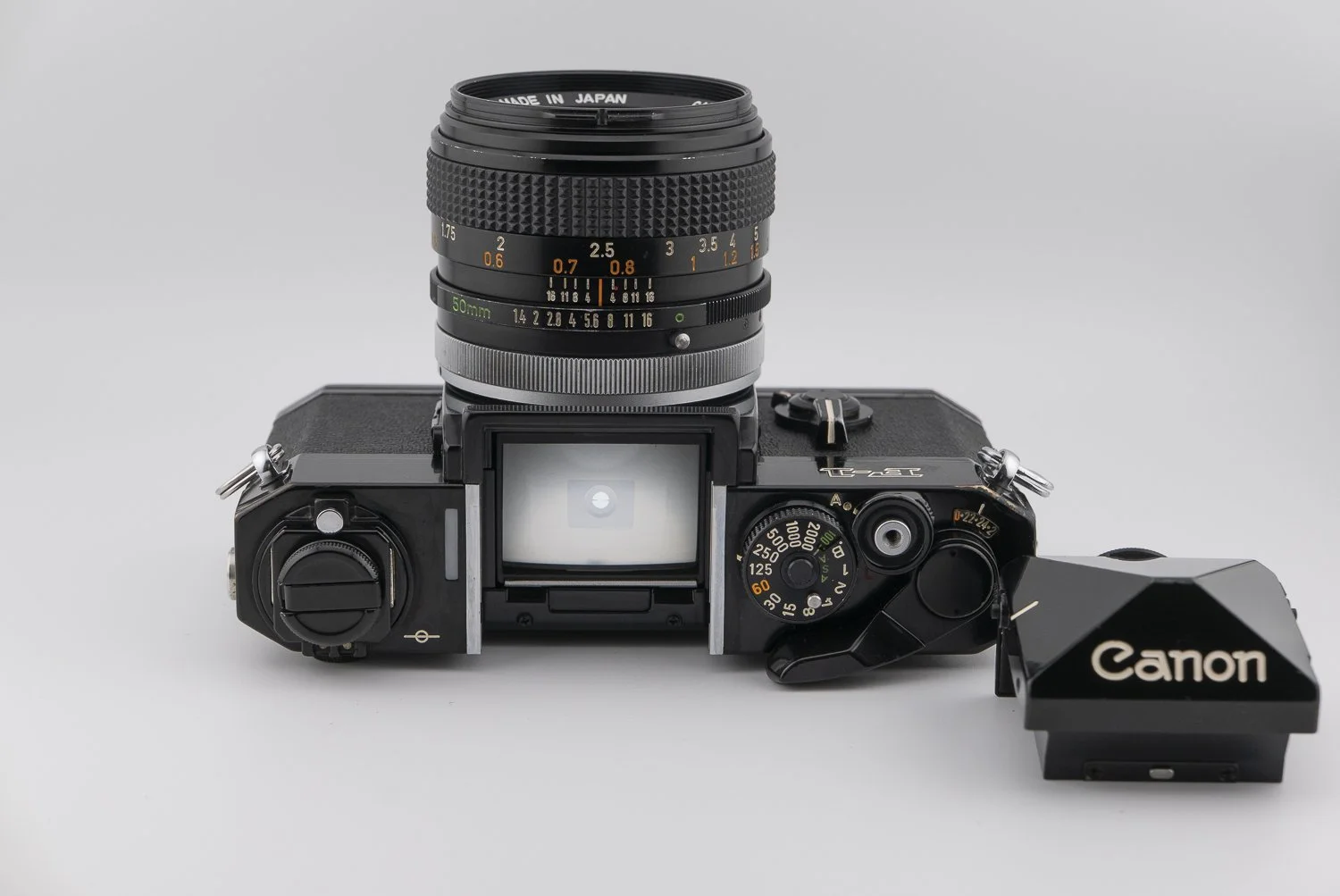

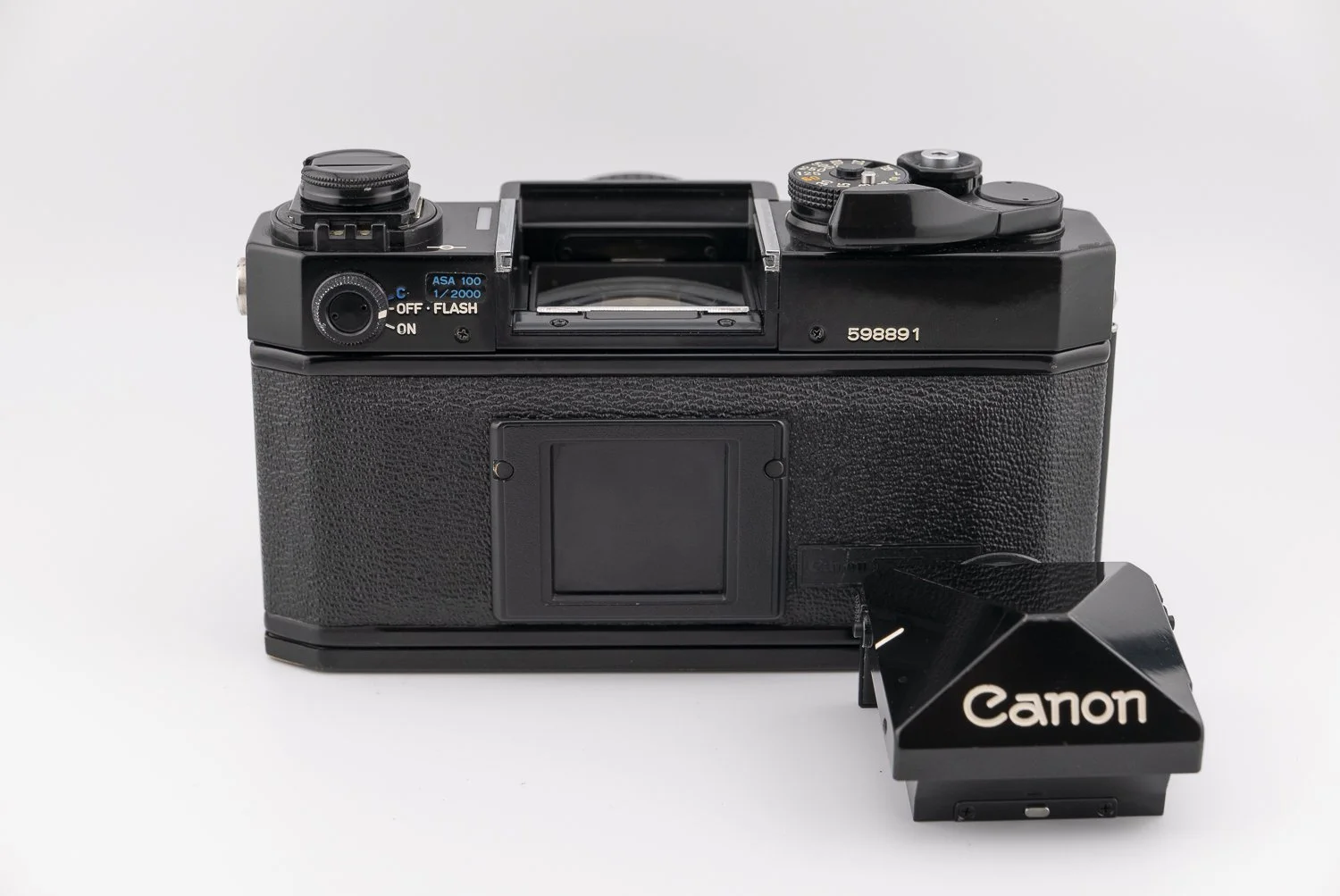

Viewfinder - Interchangeable eye-level pentaprism. 0.77x magnification and 97% coverage. Microprism rangefinder at center of fresnel matte screen (standard Type A). Eight other interchangeable focusing screens optional. Metering indicator, exposure match needle, stopped-down metering needle, shutter speed indicator, low-light warning, and light window for exposure display provided. A diagonally-cut condenser lens block is semi-silvered on the diagonal surface. This beam splitter enables the incoming light to be split for the viewfinder image and metering cell. Mirror lockup provided.

Exposure Control - CdS cell for TTL full-aperture, match-needle partial metering at center or TTL stopped-down, match-needle partial metering at center (12% of center). Metering range at ISO 100 and f/1.4: EV 2.5 – 18. Film speed range from ISO 25 to 2000. 1.3 V MD mercury cell power source. Battery check provided.* With the interchangeable Servo EE Finder, the lens’ AE switching pin changes the metering mode from manual to AE. The camera’s aperture signal lever enables continuous metering and automatic control for shutter speed-priority AE.

Film Loading & Advance - Camera back with safety latch and slotted take-up spool. Advances with camera-top lever’s 180 stroke (partial strokes enabled). Ready position at 15.

Frame Counter - Counts up from 0 to 40. Resets automatically when the camera back is opened.

Film RewindCamera-top crank

Power Source - One 1.5 V cell

Dimensions & Weight - 147 x 99 x 43 mm, 820 g
